Built for Boost, Tuned for Reliability

The Toyota 1JZ-GTE VVT-i engine is one of the most sought-after inline-six powerplants in the JDM world. Known for its strength, smooth power delivery, and incredible tuning potential, the 1JZ has earned a reputation as the little brother of the 2JZ that can still punch way above its weight.

But as any tuner knows, when you start pushing more boost and demanding more power, the fuel system becomes a critical piece of the puzzle. Without enough fuel flow, even the strongest forged build can run lean and fail. That’s why serious 1JZ builders turn to Radium Engineering’s High-Performance Fuel Rail for the 1JZ-GTE VVT-i.

This isn’t just another aftermarket part—it’s a precision-machined, motorsport-ready fuel rail designed to provide reliable, consistent fueling for everything from street builds to full-on race cars.

Why the Fuel Rail Matters

A fuel rail might not seem as exciting as a turbo upgrade or a new exhaust, but it plays a central role in how your engine performs. Its job is simple: deliver consistent, high-pressure fuel to the injectors. But under high boost, ethanol fuel use, and aggressive tuning, the OEM rail can show its limitations.

• Flow Restriction: Stock rails are fine for factory power, but larger injectors and higher demand can expose bottlenecks.

• Uneven Distribution: OEM rails sometimes struggle to evenly deliver fuel to all cylinders, especially at high pressure.

• Material Limitations: Factory rails weren’t designed with ethanol compatibility in mind, leading to potential corrosion and long-term issues.

Upgrading the fuel rail ensures the rest of your fuel system isn’t being held back by a weak link.

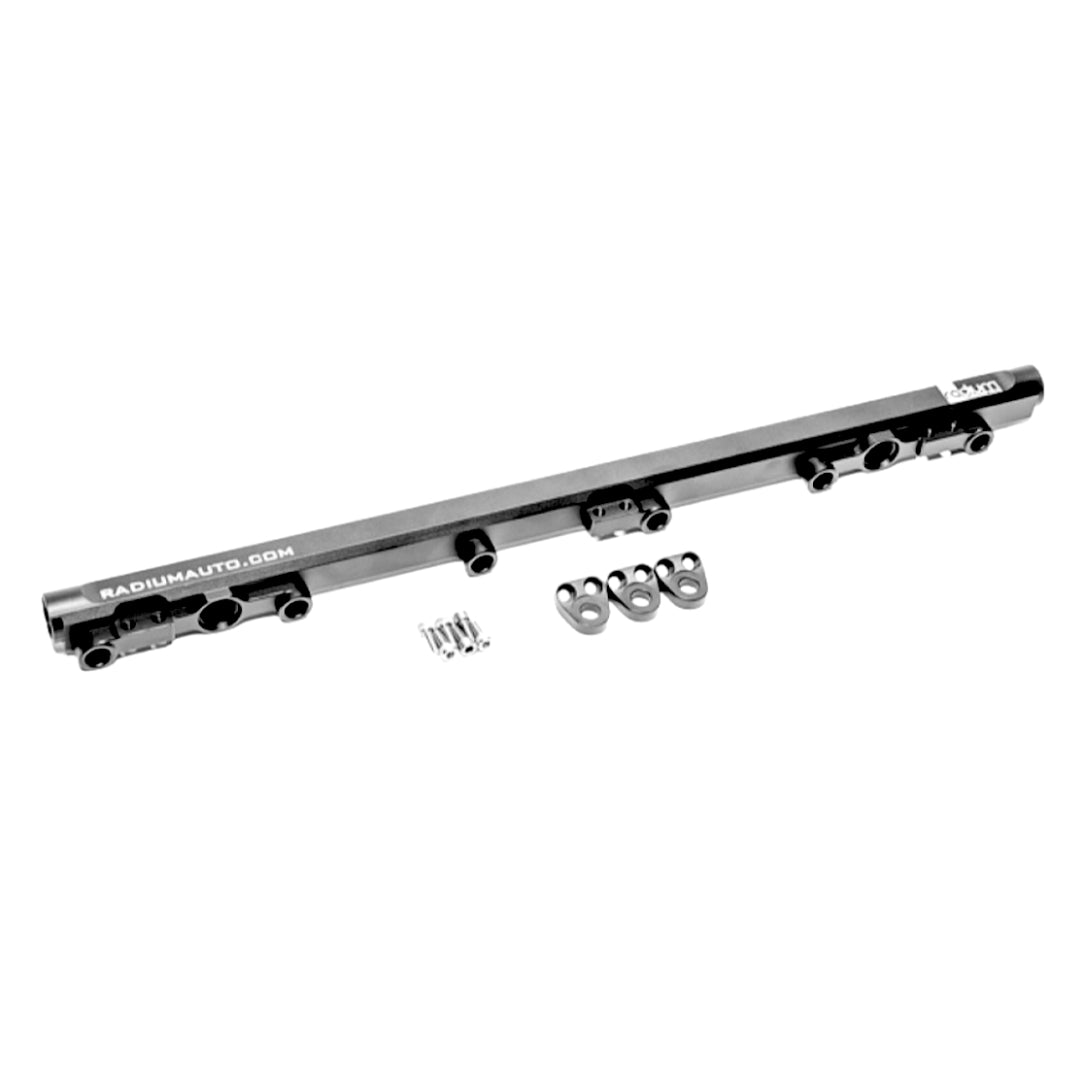

Radium Engineering: What Sets Their Fuel Rail Apart

Radium Engineering is known worldwide for building precision fuel components that solve these issues and integrate seamlessly with high-performance builds. Their 1JZ-GTE VVT-i fuel rail is no exception.

Key Features

• 8AN ORB Ports: Large ports for maximum flow, compatible with a wide range of AN fittings and configurations.

• Anodized Aluminum Construction: CNC-machined and anodized for strength, durability, and resistance to ethanol-related corrosion.

• E85 Compatibility: Designed specifically for modern fuels, including ethanol blends, which are increasingly popular for turbo builds.

• Top-Feed Injector Support: Converts the system to run high-performance top-feed injectors, which are more widely available and flow much higher than OEM side-feed options.

• OEM-Plus Fitment: Designed to bolt directly onto the 1JZ-GTE VVT-i intake manifold for a clean, factory-like installation.

Why Upgrade to Top-Feed Injectors?

One of the biggest advantages of Radium’s fuel rail is that it supports top-feed injectors. The OEM 1JZ-GTE VVT-i uses side-feed injectors, which are limited in flow capacity and aftermarket availability.

Top-feed injectors:

• Offer a much larger selection of sizes and spray patterns.

• Are easier to source for high horsepower builds.

• Provide more consistent atomization at high fuel pressures.

• Are more reliable for ethanol and alternative fuel use.

With Radium’s rail, you open the door to a massive range of injector choices—critical when dialing in a build that could range from 500hp to well over 1,000hp.

Why E85 Compatibility Matters

E85 has become a favorite fuel for tuners thanks to its high octane rating and cooling properties. But ethanol is also more corrosive than standard gasoline, which can wreak havoc on fuel system components not designed to handle it.

Radium’s fuel rail is fully E85-compatible thanks to its anodized aluminum finish and use of ethanol-safe O-rings and seals. This means you can run ethanol confidently without worrying about premature corrosion or leaks.

Performance Benefits

So what does all this mean in practice? Installing the Radium 1JZ fuel rail delivers:

• Consistent Fuel Pressure: No cylinder runs lean under boost.

• Higher Flow Capacity: Supports big injectors and big power.

• Better Reliability: Stronger, ethanol-safe materials mean long service life.

• Future-Proofing: As you add mods (bigger turbo, more boost, flex-fuel systems), the rail won’t need upgrading again.

Installation Considerations

Installing the Radium 1JZ-GTE VVT-i fuel rail is straightforward, but there are a few things to keep in mind:

1. Injectors Not Included: You’ll need to select top-feed injectors sized for your build. Popular sizes range from 1,000cc to 2,000cc depending on horsepower goals.

2. Fittings & Lines: The rail uses 8AN ORB ports, so you’ll need compatible AN fittings and fuel lines.

3. Fuel Pressure Regulator: Consider upgrading to a high-flow FPR, especially if running ethanol or very large injectors.

4. ECU Tuning Required: Any injector change will require retuning your ECU for proper fueling.

Supporting Mods

To maximize the benefits of the Radium rail, pair it with:

• High-Flow Fuel Pumps: In-tank or external pumps sized to your horsepower goals.

• Fuel Pressure Regulator: Adjustable FPR for consistent pressure under boost.

• AN Fuel Lines: Ethanol-safe, high-flow fuel lines for reliability.

• Flex-Fuel Sensor: If planning to run E85, this adds safety and adaptability.

Together, these components create a fueling system capable of supporting nearly any 1JZ power goal.

Why Radium?

Radium Engineering has built its reputation on designing OEM-plus fuel solutions that integrate seamlessly while delivering motorsport-grade performance. Their products are known for:

• Precision machining and tolerances.

• Clean, factory-style integration.

• Ethanol compatibility and long-term durability.

• Proven results in street, drift, drag, and time attack builds worldwide.

When you choose Radium, you’re not just buying a part—you’re investing in reliability and peace of mind for your build.

Who Should Run This Fuel Rail?

• Street Enthusiasts: Running bolt-ons or E85 who want reliable fueling.

• Drift Cars: Consistent fueling under constant throttle transitions.

• Track/Time Attack Cars: Sustained high RPM requires consistent flow and distribution.

• Drag Racers: High-horsepower setups with large injectors need the capacity and stability.

If you’re building a 1JZ-GTE VVT-i for anything beyond stock power, this fuel rail should be on your list.

Final Thoughts

The Radium Engineering 1JZ-GTE VVT-i High-Performance Fuel Rail is the perfect blend of OEM-like fitment and motorsport-grade function. By supporting top-feed injectors, ensuring ethanol compatibility, and delivering consistent high-pressure flow, it removes one of the major bottlenecks in building reliable high-power 1JZs.

Whether you’re chasing a clean 500hp street car or building a 1,200hp monster, this fuel rail is the foundation for a fueling system that won’t let you down.
